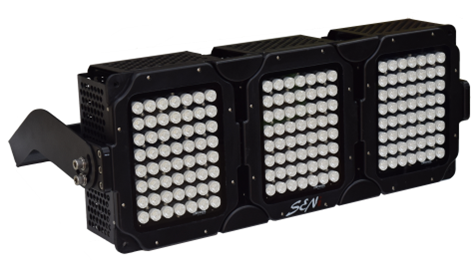

System Configuration
| Light Source | LED |
| Input Voltage | AC90V ~ 305V[47~63Hz] |
| Wattage | 900W |
| Life Span | 50,000 hrs |
| CCT | 5,000~5,300K |
| Lumen output | 85,500lm |
| Efficacy | 100lm/w ±5% |
| Beam Angle | 20°, 45°, 60°, 120° |
| IP Rate | > 65 |
| CRI | > 79Ra |

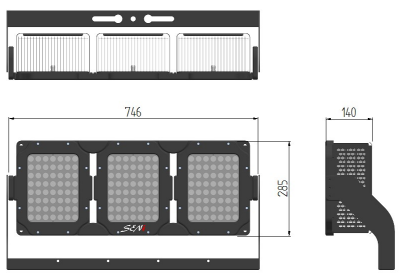

| Dimensions | 746(W) x 285(H) x 140(D) mm |
| Weight | 14kg |
| Material | Aluminum |

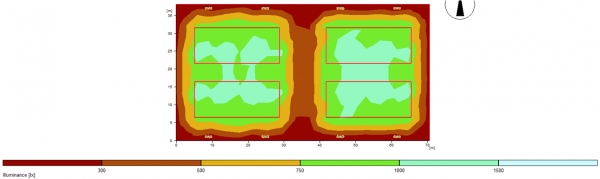

Lighting Design – Tennis Court

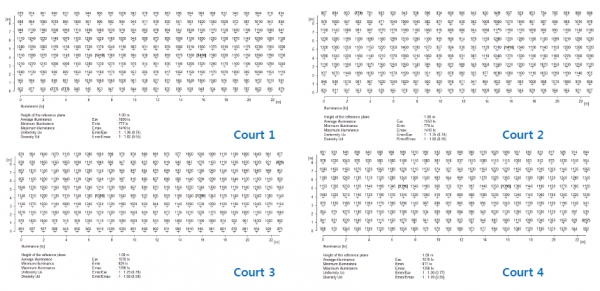

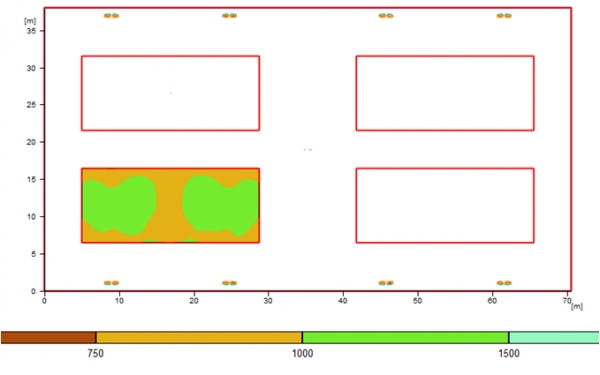

Court 1 Average Maintained Lux level : 1,050 Lux
Minimum average uniformity : 0.74
Overall illuminance

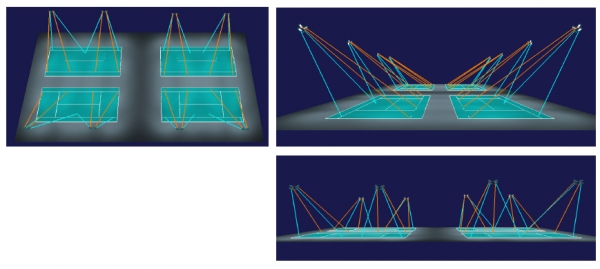

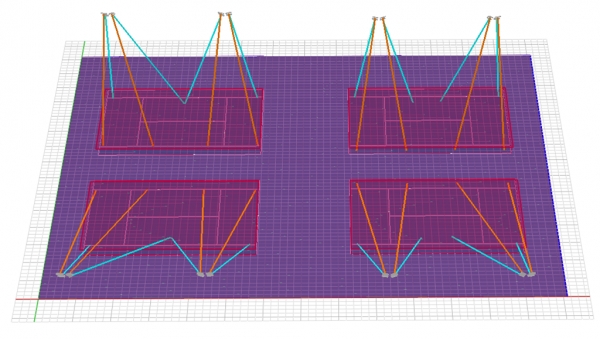

-> Lighting Beam Angle
ORANGE 20°
BLUE 45°

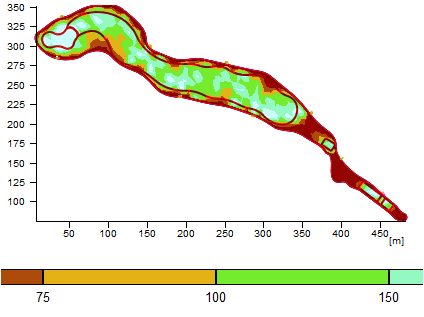

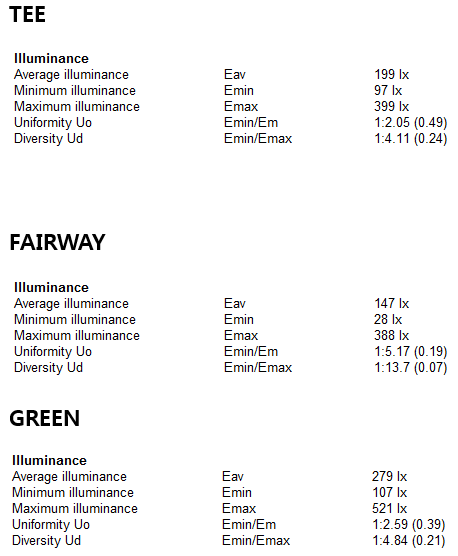

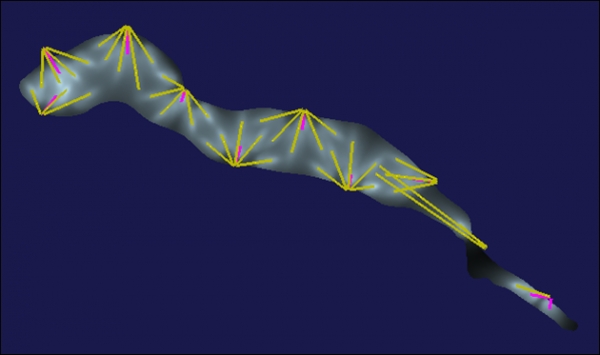

Lighting Design – Golf Course
